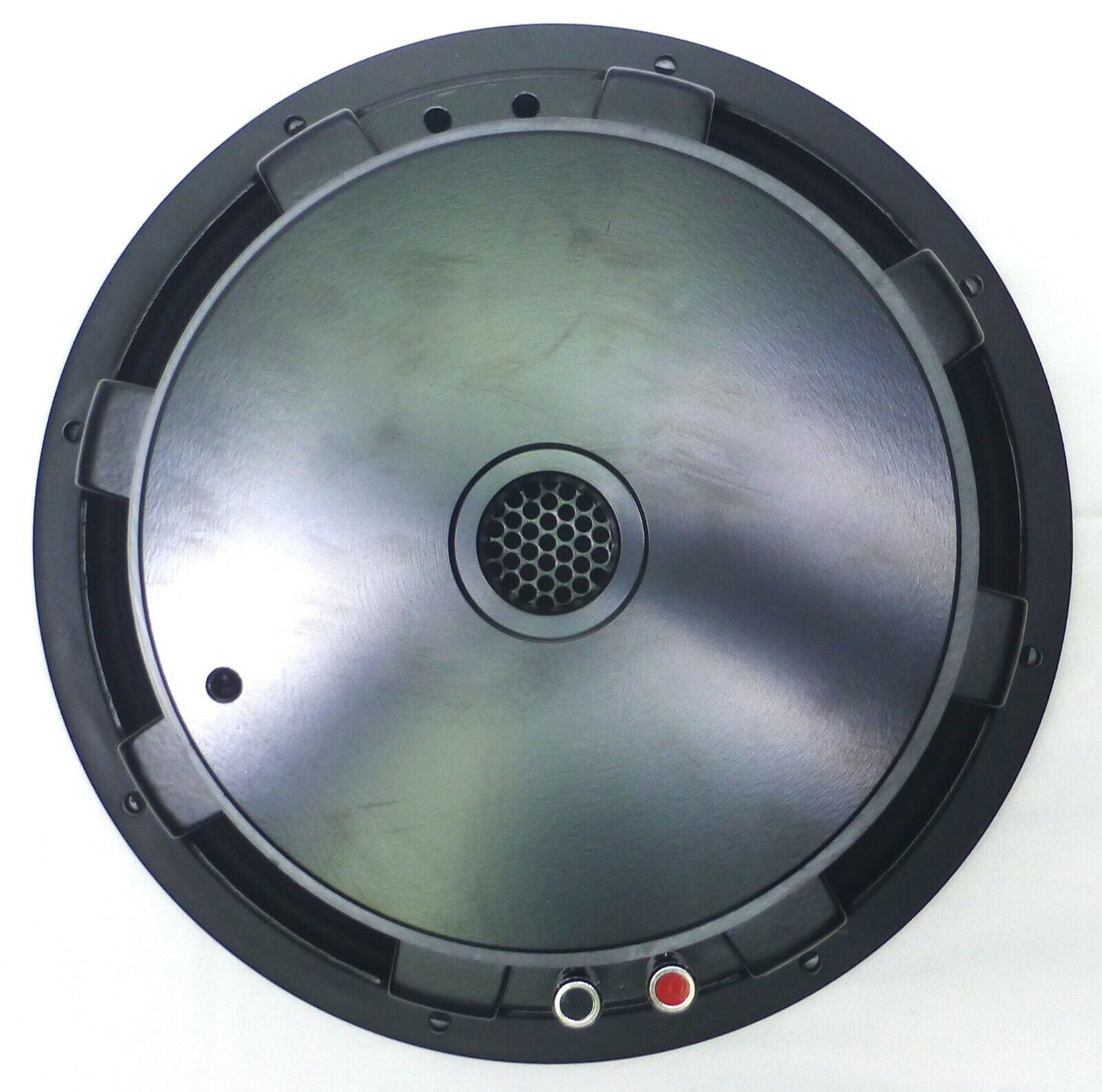

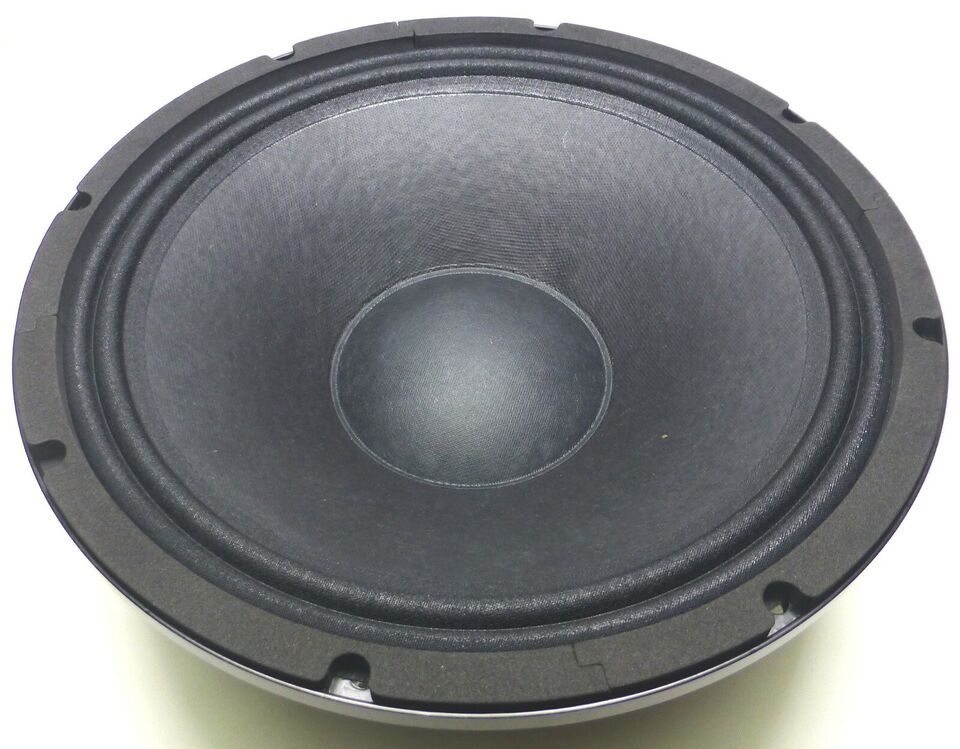

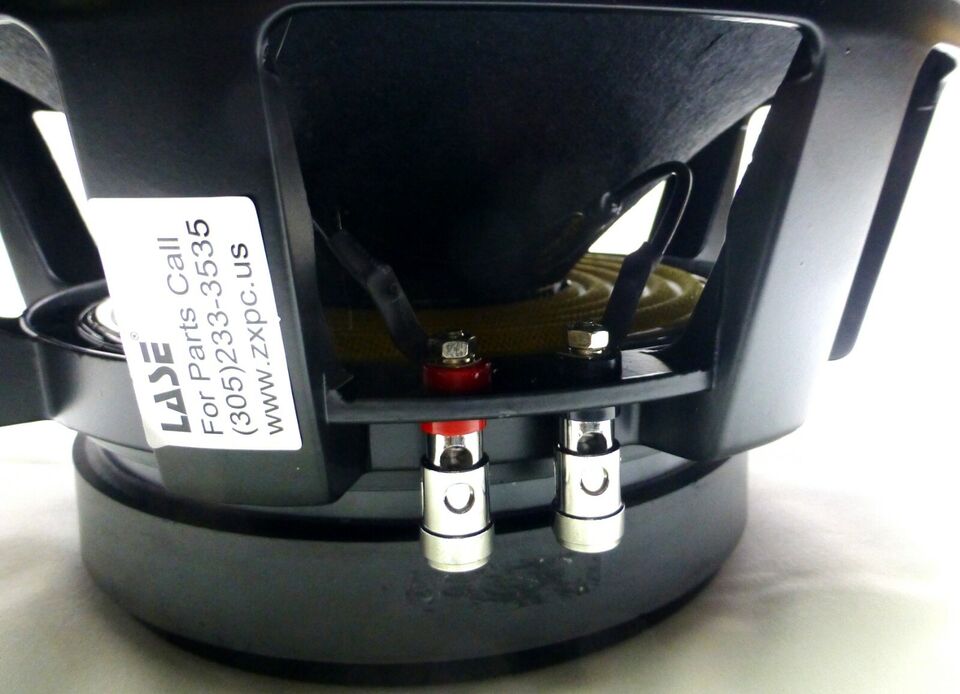

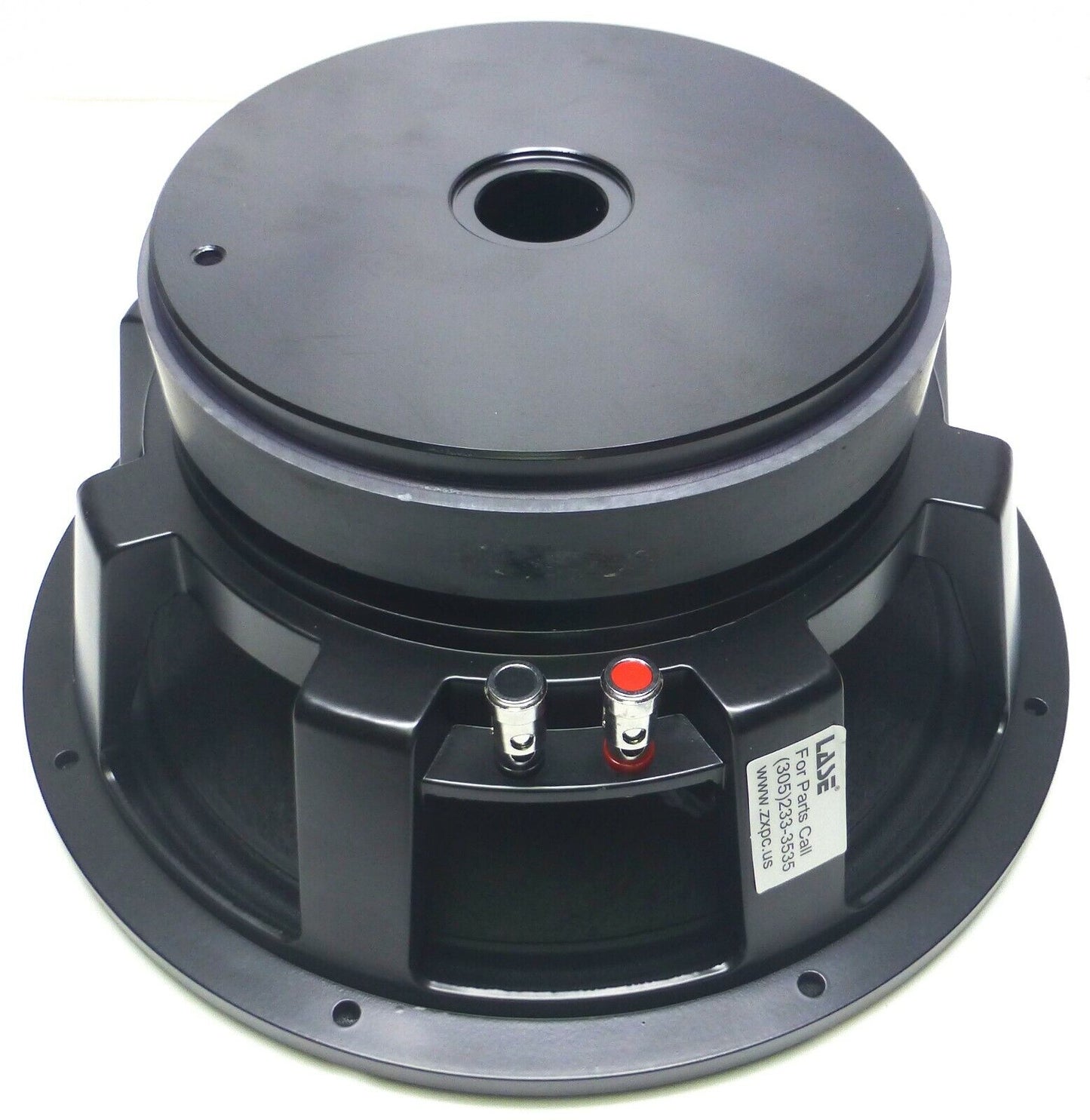

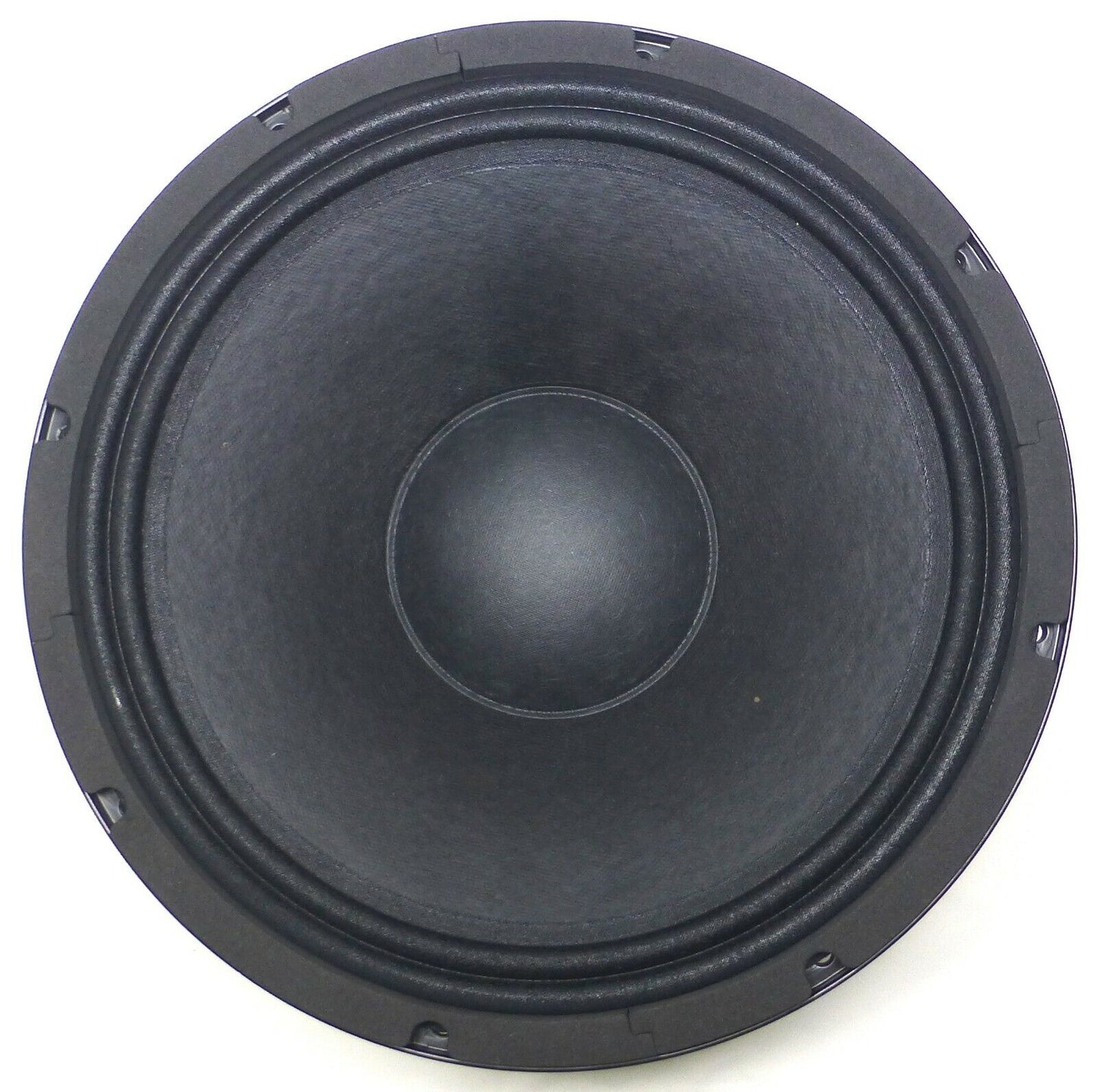

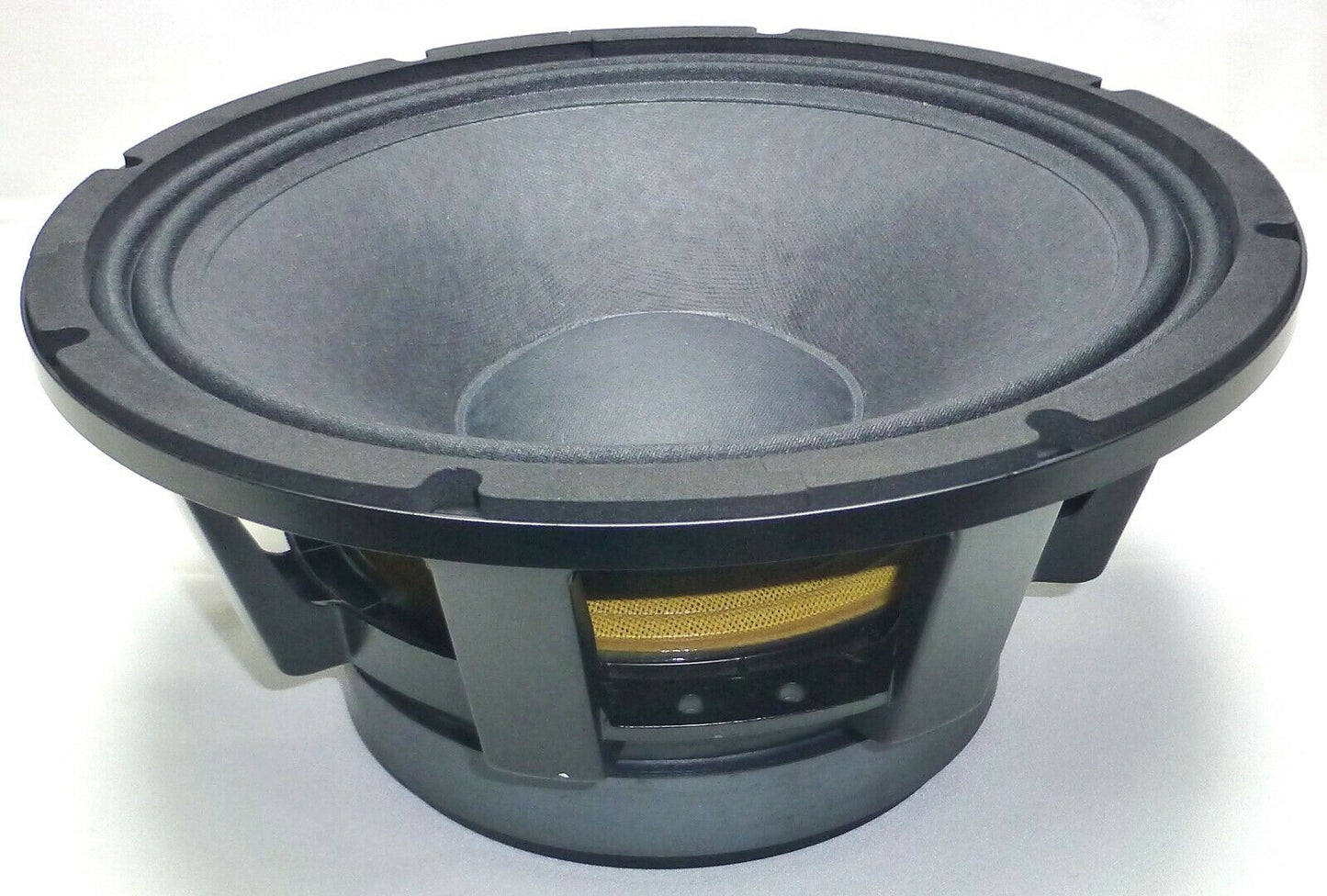

LASE1201 Replacement Speaker for 12" Electro Voice EVS-12SB, EVM-12L, & More

Our LASE1201 replacement speaker for 12" Electro Voice speakers can be used in place of the following models:

• EVS-12SB
• EVM-12L
• Force 12
• SX200
• SX300
• EVI-12
• QRX

The LASE1201 speaker is recommended for use in professional audio as a sealed or vented midbass. It can also be used in a vented bass enclosure incorporating a high-pass filter and is great in horn-loaded designs thanks to its high motor strength.

FEATURES

• Professional bass/mid-bass speaker

• Polyamide-imide coated copper voice coil

• Kapton coil former

• 1000 watt continuous program power handling

• High sensitivity and low distortion

• Shaped shallow triple-roll damped surround

• Primarily designed to be horn loaded in medium and long throw system

• Ferrite magnet

SPECIFICATIONS

• Nominal Diameter: 12"
• Power Handling (rms): 500 watts
• Power Handling (max): 1000 watts
• Impedance: 8 ohm.
• Frequency Response: 57 to 2,800 Hz.
• Maximum Linear Excursion (Xmax): 4.8 mm
• Sensitivity: 97.1db 1w/1m
• Voice Coil Diameter: 3"
• Magnet Weight: 5 lbs
• Depth: 6"
