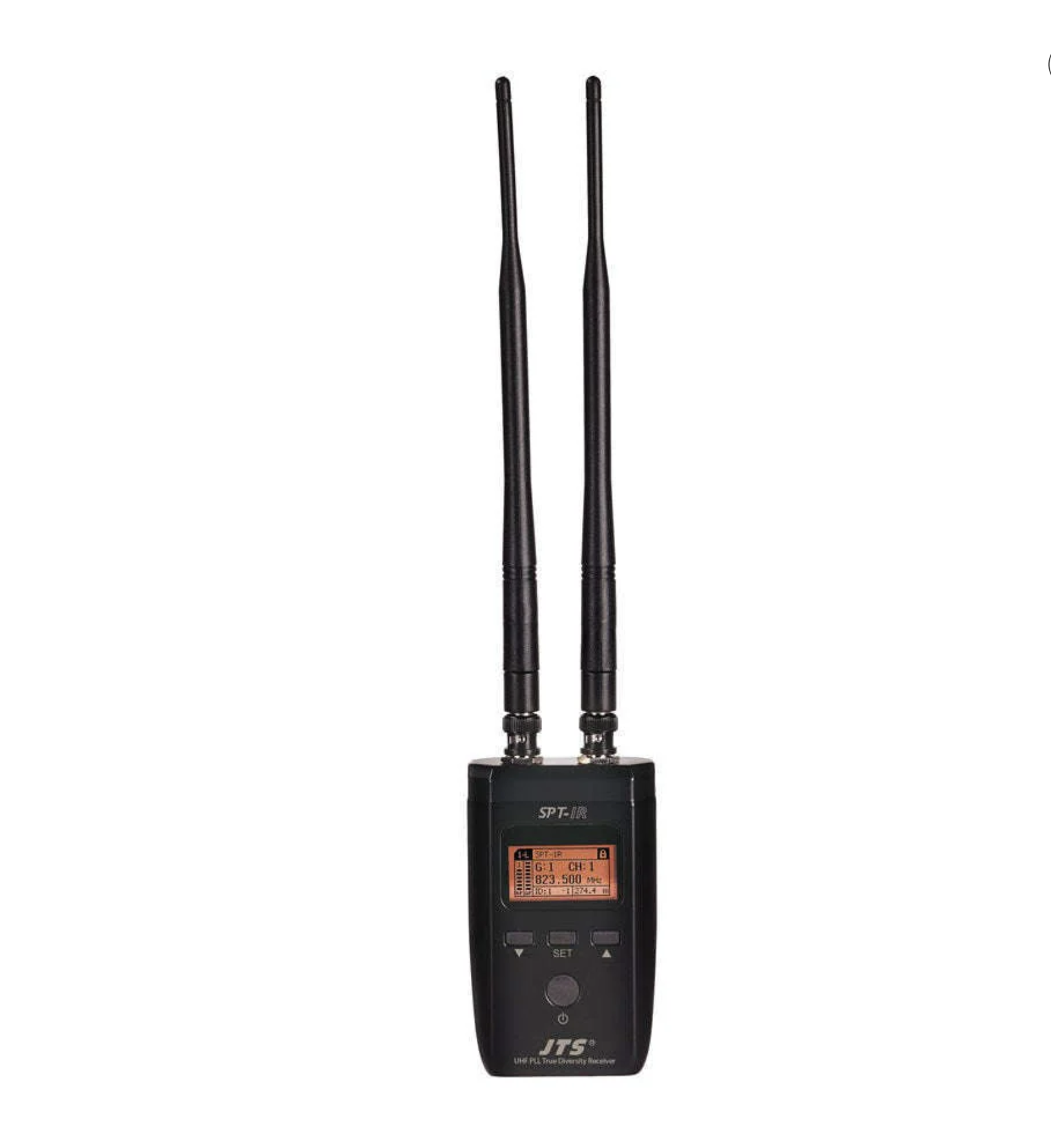

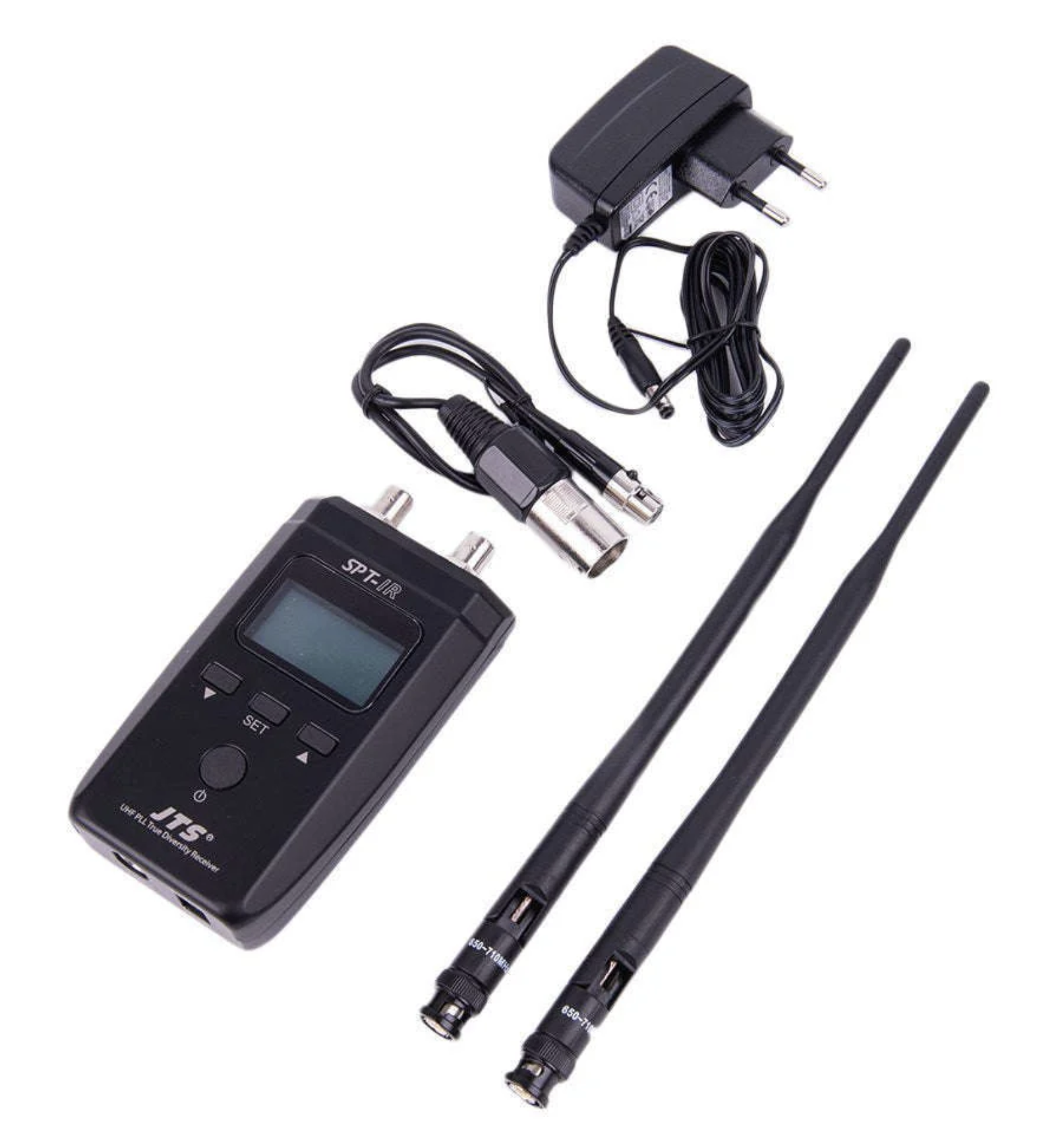

JTS SPT-1R Dual-Channel UHF Wireless Audio Receiver, 2.4GHz

Note : SPT-1T transmitter sold separately

With UHF true diversity technology, receiver 36 MHz switching bandwidth and 6 preset groups of up to 1441 selectable channels, the SPT-1R & 1T wireless audio system is your perfect partner for mission critical applications.

• Obviate Audio Delay/Latency

• Eliminate Complex Cable Runs

• Fast Setup/Teardown with Great Installation Flexibility

• Independent Audio Channel Control

Your best and state-of-the-art wireless solution that eliminates the need for speaker cabling and audio latency without any compromise in sound quality sound quality.

SPECIFICATIONS SPT-1R

• Frequency Oscillation    Phase-Locked Loop, PLL

• Carrier Frequency    470~960 MHz

• Number of Channels    2 Channels

• Frequency Matching    2.4GHz RF

• Antenna Selection    True Diversity

• Signal to Noise Ratio (S/N)    >106dB(A)

• Total Harmonic Distortion (T.H.D)    <0.5%@1KHz

• Reception Sensitivity    -95dBm,S/N>80dB

• Mirror Rejection Ratio    >80 dB

• General Frequency Response    50Hz~18KHz±2dB

• Antenna Connector    BNC Female

• Display    LCD

• Functions Displayed    Group, Channel, Frequency, Antenna A/B, AF Indication, RF Indication, Remoset ID, Delay Time (distance)

• Controls    Power Switch, Group, Channel, Frequency, Reception Sensitivity, Key Lock, Delay Time, Display Settings,
• Language

• Audio Output Level (MAX)    Mini XLR Jack：+10dBu(Line)、-10dBu(MIC)

• Audio Output Impedance    600Ω

• Mute    Noise Mute and Pilot Tone

• Output Port    Balanced Mini XLR

• Power    DCV INPUT 12V/0.5A

• Dimensions    365mm(L) x 70mm(W) x 30mm(H)
